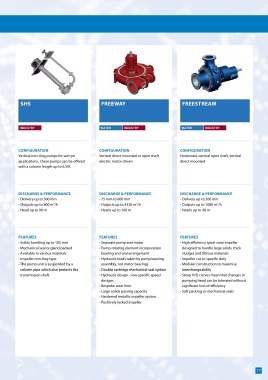

P. 17
SHS Freeway Freestream
Industry Water Industry Water Industry
cONFIGURAtION cONFIGURAtION cONFIGURAtION
Vertical non-clog pumps for wet pit Vertical direct mounted or open shaft Horizontal, vertical open shaft, vertical
applications, these pumps can be offered electric motor driven direct mounted
with a column length up to 6.5M
DISchARGE & PERFORmANcE DISchARGE & PERFORmANcE DISchARGE & PERFORmANcE
• Delivery up to 300 mm • 75 mm to 600 mm • Delivery up to 200 mm
• Outputs up to 800 m3/h • Outputs up to 4320 m3/h • Outputs up to 1080 m3/h
• Head up to 90 m • Heads up to 100 m • Heads up to 90 m
FEAtURES FEAtURES FEAtURES
• Solids handling up to 105 mm • Separate pump and motor • H igh efficiency spiral vane impeller
• Mechanical seal or gland packed • P ump rotating element incorporation designed to handle large solids, thick
• Available in various materials bearing and seal arrangement sludges and fibrous materials
• Impeller non clog type • H ydraulic loads taken by pump bearing • Impeller cut to specific duty
• The pump unit is suspended by a assembly, not motor bearings • M odular construction to maximise
column pipe which also protects the • Double cartridge mechanical seal option interchangeability
transmission shaft. • H ydraulic design – low specific speed • S teep H/Q curves mean that changes in
designs pumping head can be tolerated without
• B espoke wear liner significant loss of efficiency
• Large solids passing capacity • Soft packing or mechanical seals
• Hardened metallic impeller option
• Positively locked impeller
17
