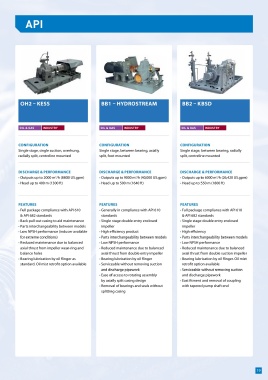

P. 19
API
OH2 – KESS BB1 – Hydrostream BB2 – KBSD
OIL & GAS Industry OIL & GAS Industry OIL & GAS Industry
cONFIGURAtION cONFIGURAtION cONFIGURAtION
Single stage, single suction, overhung, Single stage, between bearing, axially Single stage, between bearing, radially
radially split, centreline mounted split, foot mounted split, centreline mounted
DISchARGE & PERFORmANcE DISchARGE & PERFORmANcE DISchARGE & PERFORmANcE
• Outputs up to 2000 m3/h (8800 US.gpm) • O utputs up to 9000 m3/h (40,000 US.gpm) • O utputs up to 6000 m3/h (26,420 US.gpm)
• Head up to 400 m (1300 ft) • Head up to 500 m (1640 ft) • Head up to 550 m (1800 ft)
FEAtURES FEAtURES FEAtURES
• F ull package compliance with API 610 • Generally in compliance with API 610 • F ull package compliance with API 610
& API 682 standards standards & API 682 standards
• Back pull-out casing to aid maintenance • S ingle stage double entry enclosed • S ingle stage double entry enclosed
• Parts interchangeability between models impeller impeller
• L ow NPSH performance (inducer available • High efficiency product • High efficiency
for extreme conditions) • Parts interchangeability between models • Parts interchangeability between models
• R educed maintenance due to balanced • Low NPSH performance • Low NPSH performance
axial thrust from impeller wear-ring and • R educed maintenance due to balanced • R educed maintenance due to balanced
balance holes axial thrust from double entry impeller axial thrust from double suction impeller
• B earing lubrication by oil flinger as • Bearing lubrication by oil flinger • B earing lubrication by oil flinger. Oil mist
standard. Oil mist retrofit option available • S erviceable without removing suction retrofit option available
and discharge pipework • S erviceable without removing suction
• Ease of access to rotating assembly and discharge pipework
by axially split casing design • E ast fitment and removal of coupling
• R emoval of bearings and seals without with tapered pump shaft end
splitting casing
19
