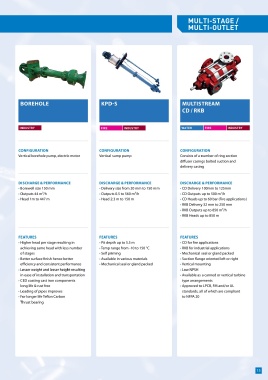

Page 15 - ALWAco SPP Brochure

MULTI-STAGE /
multi-outlet

Borehole KPD-S Multistream
CD / RKB

Industry FIRE Industry Water FIRE industry
industry OIL & GAS

cONFIGURAtION cONFIGURAtION cONFIGURAtION
Vertical borehole pump, electric motor Vertical sump pump Consists of a number of ring section
diffuser casings bolted suction and
DISchARGE & PERFORmANcE DISchARGE & PERFORmANcE delivery casing
• B orewell size 150 mm • D elivery size from 20 mm to 150 mm
• Outputs 44 m³/h • Outputs 0.5 to 560 m³/h DISchARGE & PERFORmANcE
• Head 1m to 447 m • Head 2.3 m to 150 m • CD Delivery 100mm to 125mm
• CD Outputs up to 500 m3/h
• CD Heads up to 60 bar (Fire applications)
• RKB Delivery 32 mm to 250 mm
• RKB Outputs up to 850 m³/h
• RKB Heads up to 850 m

FEAtURES FEAtURES FEAtURES
• Higher head per stage resulting in • P it depth up to 5.5 m • CD for fire applications
achieving same head with less number • T emp range from -10 to 150 °C • R KB for industrial applications
of stages • S elf priming • Mechanical seal or gland packed
• B etter surface finish hence better • A vailable in various materials • Suction flange oriented left or right
efficiency and consistent performance • Mechanical seal or gland packed • Vertical mounting
• L esser weight and lesser height resulting • Low NPSH
in ease of installation and transportation • A vailable as a canned or vertical turbine
• CED coating cast iron components type arrangements
long life & rust free • A pproved to LPCB, FM and/or UL
• Loading of pipes improves standards, all of which are compliant
• For longer life Teflon Carbon to NFPA 20
Thrust bearing

15
