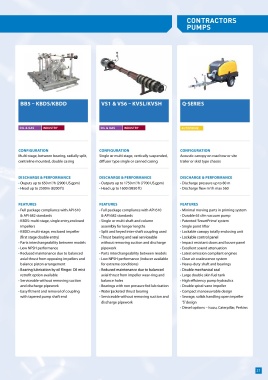

Page 21 - ALWAco SPP Brochure
P. 21
Contractors
Pumps
BB5 – KBDS/KBDD VS1 & VS6 – KVSL/KVSH Q-Series
OIL & GAS Industry OIL & GAS Industry AUTOPRIME
cONFIGURAtION cONFIGURAtION cONFIGURAtION
Multi-stage, between bearing, radially split, Single or multi-stage, vertically suspended, Acoustic canopy on road tow or site
centreline mounted, double casing diffuser type single or canned casing trailer or skid type chassis
DISchARGE & PERFORmANcE DISchARGE & PERFORmANcE DISchARGE & PERFORmANcE
• Ouputs up to 650 m3/h (2900 US.gpm) • Outputs up to 1750 m3/h (7700 US.gpm) • Discharge pressure up to 80 m
• H ead up to 2500m (8200 ft) • Head up to 1600 (9850 ft) • Discharge flow m3/h max 560
FEAtURES FEAtURES FEAtURES
• F ull package compliance with API 610 • F ull package compliance with API 610 • Minimal moving parts in priming system
& API 682 standards & API 682 standards • Durable 65 cfm vacuum pump
• K BDS: multi-stage, single entry,enclosed • S ingle or multi-shaft and column • Patented ‘SmartPrime’ system
impellers assembly for longer lengths • Single point lifter
• K BDD: multi-stage, enclosed impeller • Split and keyed inter-shaft coupling used • Lockable canopy totally enclosing unit
(first stage double entry) • Thrust bearing and seal serviceable • Lockable control panel
• P arts interchangeability between models without removing suction and discharge • Impact resistant doors and louvre panel
• L ow NPSH performance pipework • Excellent sound attenuation
• R educed maintenance due to balanced • Parts interchangeability between models • Latest emission compliant engines
axial thrust from opposing impellers and • L ow NPSH performance (inducer available • Clear air coalescence system
balance piston arrangement for extreme conditions) • Heavy-duty shaft and bearings
• B earing lubrication by oil flinger. Oil mist • R educed maintenance due to balanced • Double mechanical seal
retrofit option available axial thrust from impeller wear-ring and • Large double skin fuel tank
• S erviceable without removing suction balance holes • High efficiency pump hydraulics
and discharge pipework • Bearings with non pressure fed lubrication • Double spiral-vane impeller
• E asy fitment and removal of coupling • W ater jacketed thrust bearing • Compact manoeuvrable design
with tapered pump shaft end • Serviceable without removing suction and • S ewage, solids handling open impeller
discharge pipework ‘S’ design
• Diesel options – Isuzu, Caterpillar, Perkins
21
