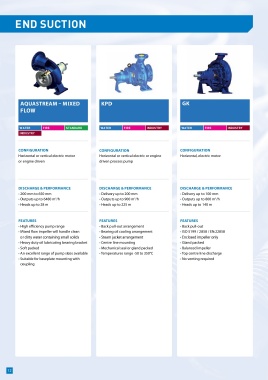

Page 12 - ALWAco SPP Brochure
P. 12
END SUCTION
Aquastream – Mixed KPD GK
Flow
Water FIRE Standard Water FIRE Industry Water FIRE Industry
industry
cONFIGURAtION cONFIGURAtION cONFIGURAtION
Horizontal or vertical electric motor Horizontal or vertical electric or engine Horizontal, electric motor
or engine driven driven process pump
DISchARGE & PERFORmANcE DISchARGE & PERFORmANcE DISchARGE & PERFORmANcE
• 200 mm to 650 mm • Delivery up to 200 mm • Delivery up to 100 mm
• Outputs up to 6480 m3/h • Outputs up to 900 m3/h • Outputs up to 800 m3/h
• Heads up to 28 m • Heads up to 225 m • Heads up to 140 m
FEAtURES FEAtURES FEAtURES
• High efficiency pump range • Back pull-out arrangement • Back pull-out
• M ixed flow impeller will handle clean • Bearing oil cooling arrangement • ISO 5199 / 2858 / EN:22858
or dirty water containing small solids • Steam jacket arrangement • Enclosed impeller only
• Heavy duty oil lubricating bearing bracket • Centre line mounting • Gland packed
• Soft packed • Mechanical seal or gland packed • Balanced impeller
• An excellent range of pump sizes available • Temperatures range -50 to 350°C • Top centre line discharge
• Suitable for baseplate mounting with • No venting required
coupling
