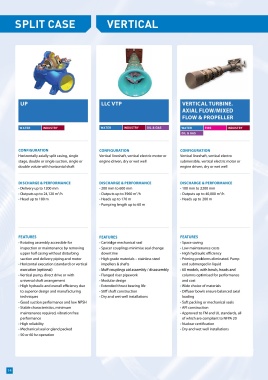

P. 14
SPLIT CASE VERTICAL
UP LLC VTP Vertical Turbine.
axial flow/mixed
flow & propeller
Water Industry Water INDUSTRY OIL & Gas Water FIRE INDUSTRY
oIL & gAS oIL & gAS oIL & gAS
cONFIGURAtION cONFIGURAtION cONFIGURAtION
Horizontally axially split casing, single Vertical lineshaft, vertical electric motor or Vertical lineshaft, vertical electro
stage, double or single suction, single or engine driven, dry or wet well submersible, vertical electric motor or
double volute with horizontal shaft engine driven, dry or wet well
DISchARGE & PERFORmANcE
DISchARGE & PERFORmANcE • 200 mm to 600 mm DISchARGE & PERFORmANcE
• Delivery up to 1200 mm • Outputs up to 3960 m3/h • 100 mm to 2200 mm
• Outputs up to 24,120 m3/h • Heads up to 170 m • Outputs up to 40,000 m3/h
• Head up to 180 m • Pumping length up to 60 m • Heads up to 200 m
FEAtURES FEAtURES FEAtURES
• R otating assembly accessible for • Cartridge mechanical seal • Space saving
inspection or maintenance by removing • Spacer couplings minimise seal change • Low maintenance costs
upper half casing without disturbing downtime • High hydraulic efficiency
suction and delivery piping and motor • High grade materials – stainless steel • P riming problems eliminated. Pump
• H orizontal execution (standard) or vertical impellers & shafts end submerged in liquid
execution (optional) • Muff couplings aid assembly / disassembly • 6 0 models, with bowls, heads and
• Vertical pump, direct drive or with • Flanged riser pipework columns optimised for performance
universal shaft arrangement • Modular design and cost
• High hydraulic and overall efficiency due • Extended thrust bearing life • Wide choice of materials
to superior design and manufacturing • Stiff shaft construction • D iffuser bowls ensure balanced axial
techniques • Dry and wet well installations loading
• Good suction performance and low NPSH • Soft packing or mechanical seals
• S table characteristics, minimum • API construction
maintenance required, vibration free • A pproved to FM and UL standards, all
performance of which are compliant to NFPA 20
• High reliability • N uclear certification
• Mechanical seal or gland packed • D ry and wet well installations
• 50 or 60 hz operation
14
