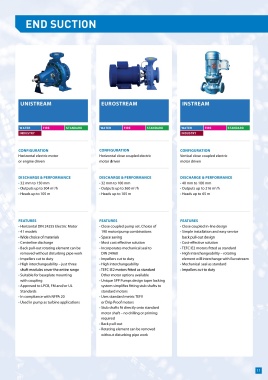

P. 11
END SUCTION
Unistream Eurostream Instream
Water FIRE Standard Water FIRE Standard Water FIRE Standard
industry industry
cONFIGURAtION cONFIGURAtION cONFIGURAtION
Horizontal electric motor Horizontal close coupled electric Vertical close coupled electric
or engine driven motor driven motor driven
DISchARGE & PERFORmANcE DISchARGE & PERFORmANcE DISchARGE & PERFORmANcE
• 32 mm to 150 mm • 3 2 mm to 100 mm • 40 mm to 100 mm
• Outputs up to 504 m3/h • O utputs up to 360 m3/h • Outputs up to 216 m3/h
• H eads up to 105 m • H eads up to 105 m • H eads up to 65 m
FEAtURES FEAtURES FEAtURES
• Horizontal DIN 24255 Electric Motor • C lose coupled pump set. Choice of • C lose coupled in-line design
• 4 1 models 190 motor/pump combinations • S imple installation and easy service
• Wide choice of materials • S pace saving back pull-out design
• Centreline discharge • M ost cost effective solution • C ost-effective solution
• B ack pull-out rotating element can be • Incorporates mechanical seal to • TEFC IE2 motors fitted as standard
removed without disturbing pipe work DIN 24960 • H igh interchangeability – rotating
• Impellers cut to duty • Impellers cut to duty element will interchange with Eurostream
• H igh interchangeability – just three • High interchangeability • M echanical seal as standard
shaft modules cover the entire range • T EFC IE2 motors fitted as standard • Impellers cut to duty
• S uitable for baseplate mounting Other motor options available
with coupling • U nique SPP Pumps design taper locking
• A pproved to LPCB, FM and/or UL system simplifies fitting stub shafts to
Standards standard motors
• In compliance with NFPA 20 • U ses standard metric TEFV
• U sed in pump as turbine applications or Drip Proof motors
• S tub shafts fit directly onto standard
motor shaft – no drilling or priming
required
• B ack pull-out
• R otating element can be removed
without disturbing pipe work
11
